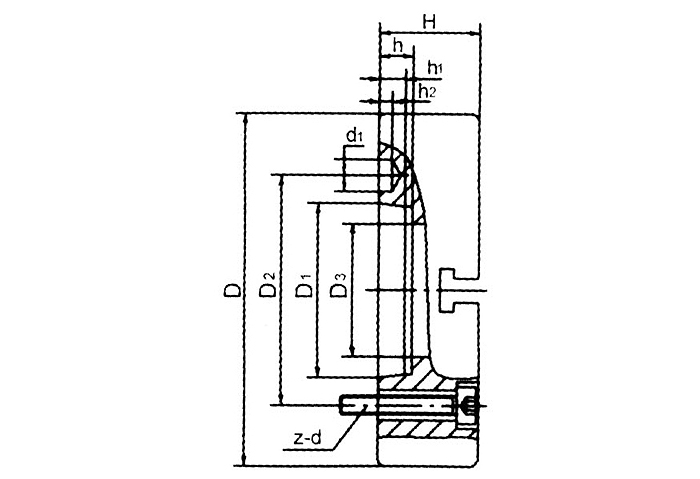

规格 D
Size

主轴头号
Short-taper No.

D1

D2

D3

H

h

h1

h2

d1

z-d

净重kg
Net WT

320

6

106.375

133.4

75

70

16

13

6.5

19.5

4-M12

38

400

6

106.375

133.4

75

75

16

13

6.5

19.5

4-M12

60

320

8

139.719

171.4

125

70

18

14

8.0

24.2

4-M16

38

400

8

139.719

171.4

125

75

18

14

8.0

24.2

4-M16

59.7

500

8

139.719

171.4

125

85

18

14

8.0

24.2

4-M16

110

630

8

139.719

171.4

125

100

18

14

8.0

24.2

4-M16

170

400

11

196.869

235.0

160

75

20

16

10.0

29.4

4-M20

59

500

11

196.869

235.0

160

85

20

16

10.0

29.4

4-M20

109

630

11

196.869

235.0

160

100

20

16

10.0

29.4

4-M20

168

800

11

196.869

235.0

160

105

20

16

10.0

29.4

8-M20

283

1000

11

196.869

235.0

160

120

20

16

10.0

29.4

8-M20

450

1250

11

196.869

235.0

160

155

20

16

10.0

29.4

8-M20

735

630

15

285.775

330.2

180

100

21

17

10.0

35.7

8-M22

165

800

15

285.775

330.2

180

105

21

17

10.0

35.7

8-M22

279

1000

15

285.775

330.2

180

120

21

17

10.0

35.7

8-M22

447

1250

15

285.775

330.2

180

155

21

17

10.0

35.7

8-M22

733

1600

15

285.775

330.2

280

170

21

17

20.0

35.7

8-M20

1568

1800

15

285.775

330.2

280

170

21

17

20.0

35.7

8-M20

2030

2100

15

285.775

330.2

280

180

21

17

20.0

35.7

8-M20

2700

1000

20

412.775

463.6

305

120

23

19

10.0

42.1

8-M27

440

1250

20

412.775

463.6

305

155

23

19

10.0

42.1

8-M27

730

2100

20

412.775

463.6

305

180

23

19

10.0

42.1

8-M27

2870
